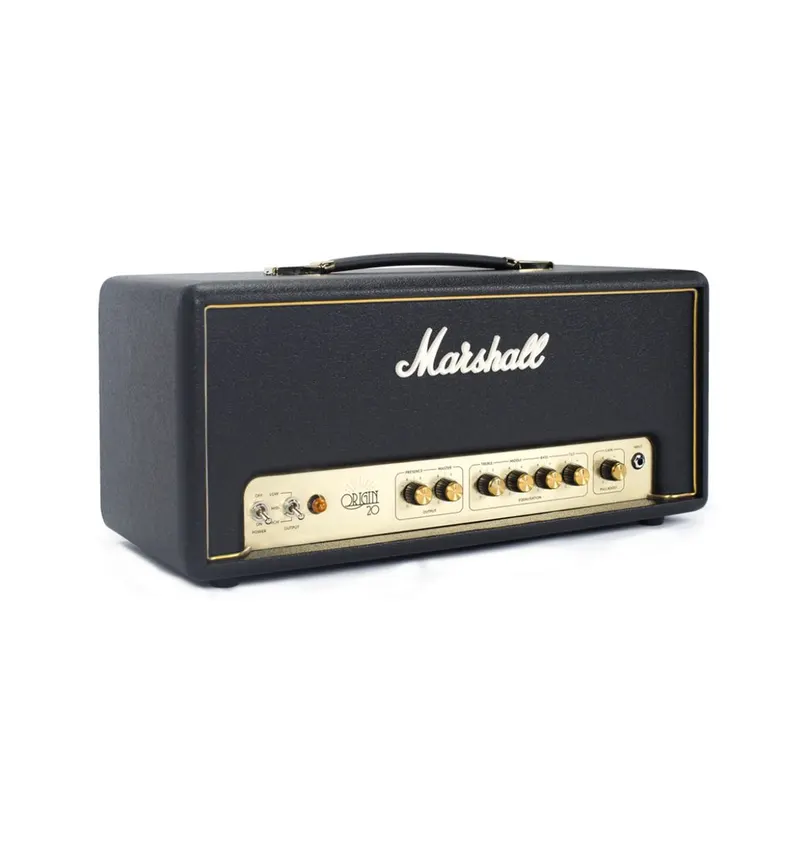

Marshall Origin20 Head Amplifier

The Marshall Origin20 Head Amplifier (ORI20H) is a compact, single-channel, all-valve head designed to deliver the rich, harmonic, and dynamic tone of classic Marshall amplification, particularly reminiscent of the JTM45/JMP Super Lead models. It is highly valued as a superb pedal platform and features the innovative Powerstem power scaling technology, allowing musicians to dial in saturated power amp tones at incredibly low volumes. The Marshall Origin20 Head Amplifier (ORI20H) is the ideal choice for musicians seeking the classic, dynamic Marshall valve sound in a package that is perfectly suited for today's diverse playing environments. Its 20W EL34 power section, combined with the unique Powerstem power scaling and Tilt control, offers unmatched tonal flexibility, making it equally effective in the studio, rehearsal room, or on stage.

Marshall Origin20 Head Technical Specifications

Brand: Marshall

Model: Origin20H

Range: Origin

Technology: Valve (Tube)

Output Wattage (Powerstem): High: 20W, Mid: approx 3W, Low: approx 0.5W

Preamp Valves: 3 x ECC83

Power Amp Valves: 2 x EL34

Controls: Gain (Pull Boost), Tilt, Bass, Middle, Treble, Master, Presence, Powerstem

Effects Loop: Yes, 1 x Series Switchable

Inputs: 1 x 1/4 inch jack instrument input, Footswitch

Outputs: 3 x 1/4 inch jack speaker outputs (16 load / 8 load), 1 x 1/4 inch DI jack

Dimensions (H x W x D): 225 mm x 520 mm x 220 mm

Weight: 9.4 kg / 21 lbs

Key Features and Benefits of Marshall Origin20 Head

The Origin20H is a streamlined amplifier focused on delivering maximum tonal flexibility through simple, effective controls:

Feature: Powerstem Power Reduction Technology -> Benefit: Switch the output power between High (20W), Mid (approx 3W), and Low (approx 0.5W). This allows you to achieve the prized power tube breakup and compression necessary for classic Marshall tone at volumes suitable for any playing environment, from the stage to the bedroom.

Feature: Versatile Tilt Control -> Benefit: A unique control that blends the tonality between the amp's two classic voices (Normal and High Treble) on a single channel. You can easily fine-tune your sound from warmer, darker tones to bright and cutting tones.

Feature: Footswitchable Gain Boost -> Benefit: The Gain knob includes a pull function, also controllable via the included footswitch, which adds an extra level of gain and thickness. This is perfect for pushing into classic crunch rhythms or boosting your lead sound.

Feature: All-Valve Design -> Benefit: Utilizes 3 x ECC83 preamp valves and 2 x EL34 power amp valves to deliver the authentic, dynamic, and responsive tone that only a true tube amplifier can provide

Feature: Series Switchable Effects Loop -> Benefit: Easily integrate your external time-based and modulation pedals (like reverb, delay, and chorus) seamlessly into your signal chain, preserving the purity of the amp's core tone.

Feature: Lightweight and Compact Design -> Benefit: Weighing only 9.4 kg (21 lbs), this amplifier head is highly portable and easy to manage for gigging musicians and studio recording

Frequently Asked Questions (FAQs)

Is the Marshall Origin20 Head loud enough for live performances?

Yes, the 20W High Power setting is sufficient for most small to medium venues, especially when paired with an efficient speaker cabinet and mic'd through a PA system.

How does the Powerstem feature work on the Origin20H?

Powerstem is Marshall's power reduction technology that allows the user to switch the output down to 3W or even 0.5W.9 This lets you drive the EL34 power tubes for authentic overdrive and saturation at volumes suitable for home or studio use.

Is the Marshall Origin20 Head a good platform for effects pedals?

Yes, its single-channel, vintage-inspired design provides a great, dynamic foundation (a pedal platform) for dirt pedals in the front and time-based effects placed in the series effects loop.

What kind of speaker cabinet should I use with the Marshall Origin20 Head?

The Origin20H has outputs for 16 ohm and 8 ohm loads, making it compatible with a wide range of speaker cabinets, including Marshall's own Origin series cabs.10 A 2x12 or 4x12 cabinet with Celestion speakers is a popular choice to maximize its classic Marshall tone.

Does the Origin20H come with a footswitch?

Yes, the Marshall Origin20 Head includes a 2-way footswitch for remote control of the Gain Boost and the Effects Loop on/off function
